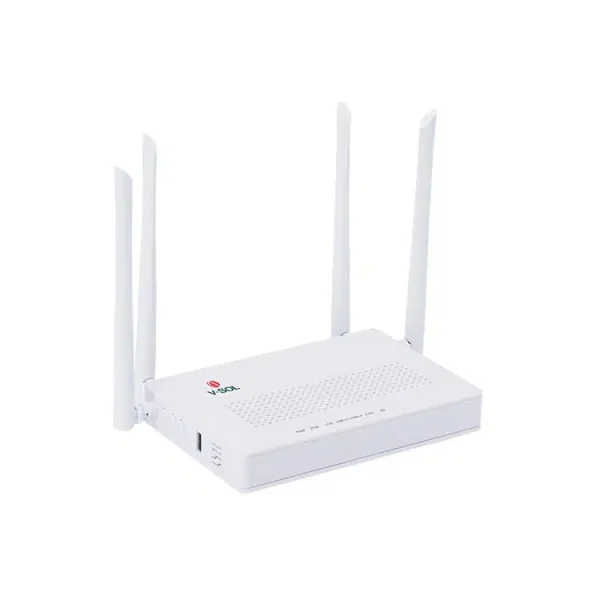

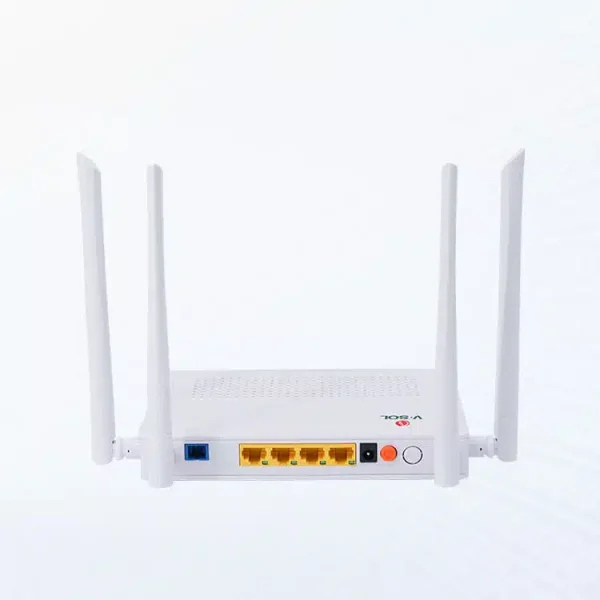

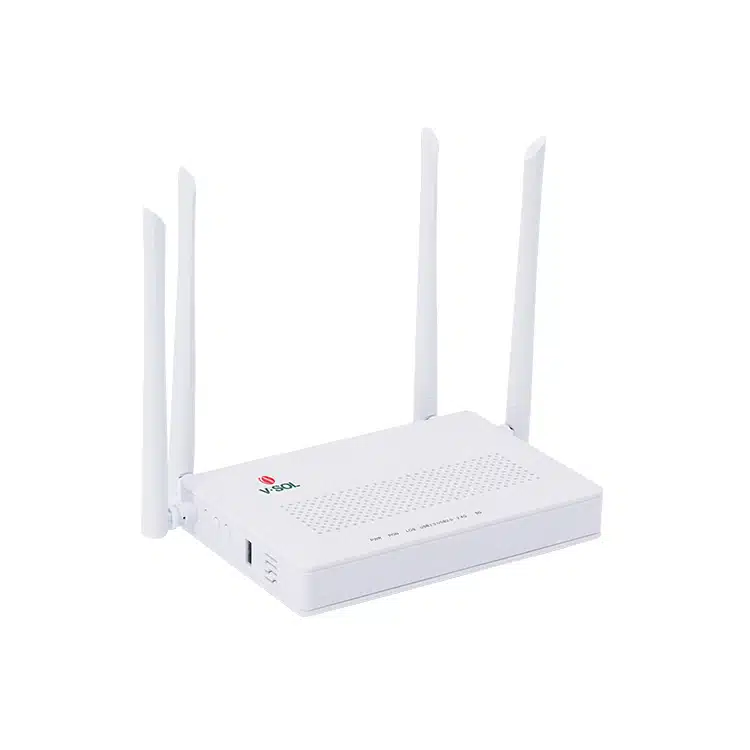

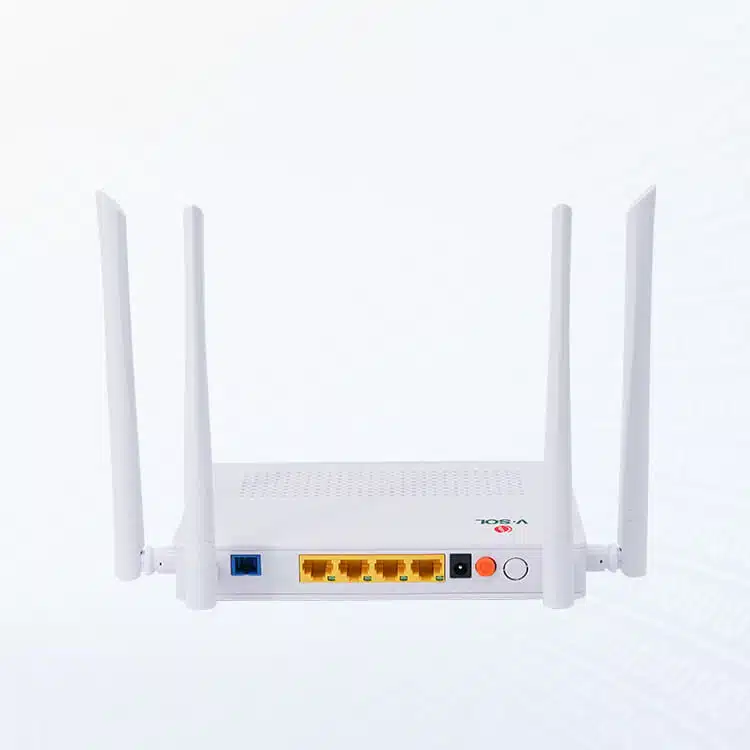

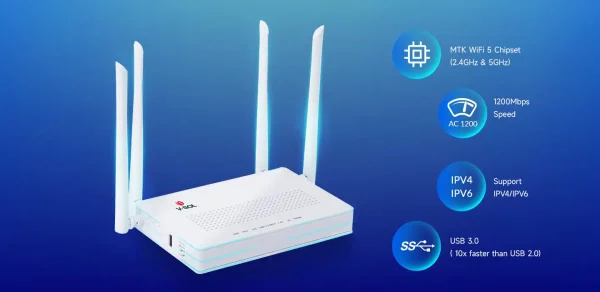

VSOL Dual-band Gigabit WiFi5 Router

○ Hardware Parameter

Dimension

205mm×140mm×37mm(L×W×H)

Net weight

0.34Kg

Operating condition

Operating temp: -10 ~ +55°C

Operating humidity: 5 ~ 95%  (non-condensed)

Storing condition

Storing temp: -40 ~ +70°C

Storing humidity: 5 ~ 95%  (non-condensed)

Power adapter

DC 12V, 1/1.5A, external AC-DC power adaptor

Power supply

≤10W

Interfaces

4GE+WiFi5+USB 3.0

Indicators

PWR, PON, LOS, WAN, ETH1~ETH4, 2.4Ghz WiFi, 5Ghz WiFi, WPS, USB

○ Interface parameter

PON interface

l 1XPON port(EPON PX20+ and GPON Class B+)

l SC single mode, SC/UPC connector

l TX optical power: 0～+4dBm

l RX sensitivity: -27dBm

l Overload optical power: -3dBm(EPON) or -8dBm (GPON)

l Transmission distance: 20KM

l Wavelength: TX 1310nm, RX1490nm

WiFi interface

l Compliant with IEEE802.11b/g/n/ac

l 2.4GHz Operating frequency: 2.4000-2.4835GHz

l 5.0GHz Operating frequency: 5.150-5.825GHz

l Support MIMO, rate up to 1.167Gbps

l WiFi: 2.4GHz( 2T2R ), 5.8GHz( 2T2R ), 5dBi antenna, support: multiple SSID

l TX power: 11n–22dBm/11ac–24dBm

LAN interface

4*GE, Auto-negotiation, RJ45 ports

USB interface

USB 3.0 for Shared Storage/Printer

○ Function Data

XPON mode

Dual mode , can access EPON/GPON OLTs(HUAWEI,ZTE,FiberHome, etc.)

Connect mdoe

Routing Mode

WiFi

l IEEE802.11b/g/n/ac(TX power:17dBm/16dBm/15dBm)

l WiFi Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES)

Firewall

DDOS, Filtering Based on ACL/MAC/URL

Layer2

802.1D & 802.1ad bridge, 802.1p Cos,802.1Q VLAN

Layer3

IPv4/IPv6 , DHCP Client/Server , PPPoE , NAT , DMZ , DDNS

Multicast

IGMP v1/v2/v3 , IGMP snooping

Security

Flow & Storm control, Loop Detection

O&M

WEB/TELNET/OAM/OMCI, Support private OAM/OMCI protocol and Unified network management of VSOL OLT
